Description

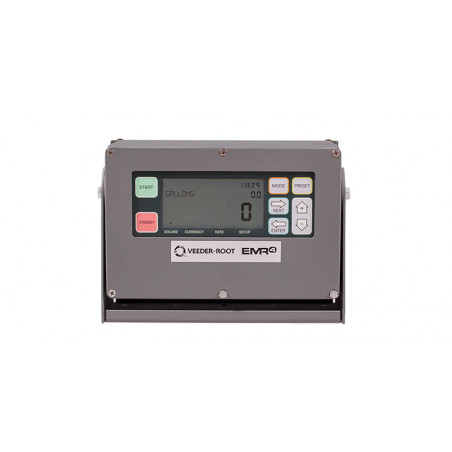

The EMR4 is designed to be installed or integrated with any meter as a custody transfer approved electronic meter register for mobile and stationary bulk fueling. The EMR4 system is comprised of two separate components: The Register Head, and the IB Box. These core components, along with a series of accessories, allow the user to configure a system that meets their specific needs on the delivery vehicle, loading rack, or other liquid dispensing application.
How/When to use it ?
When the need to display the volume is present.
Specificities :
Dual Register Head System – Simultaneous operation with one IB box.
Global Weights & Measures approval for installation anywhere in the world.
UL, ATEX, IECEx certified.
Class 1 Division 1 certification for approved installation in all mobile and stationary applications.
Built-in USB for easy, 3-step software upgrades. Software upgrades continuously available on veeder.com at no charge, assuring your system can grow with your needs.
Two RS-232 communication ports for easy access to data and/or remote control.
Built with integrated Wi-Fi for future wireless accessibility.
System design is adaptable to all meters.
Optional Electronic temperature compensation
Currency and volume Preset Deliveries.
