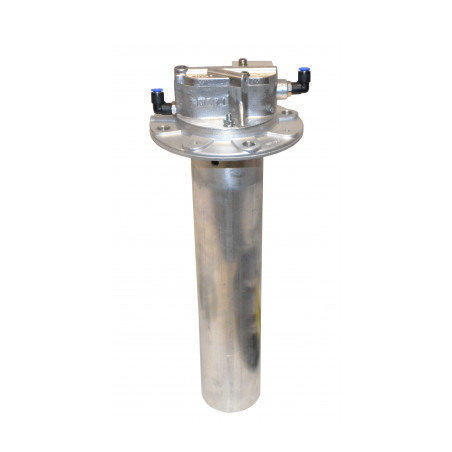

Tank overfill probe NIEHUSER N17LMP (long)

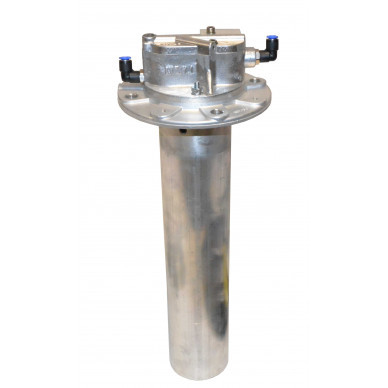

Tank overfill probe NIEHUSER N17LMP (long) - Image 2

Tank overfill probe NIEHUSER N17LMP (long)

€ 100,00

The level sensor N17LMP is a pneumatic switch for overfill protection in tanks containing liquid fuels and for application in liquid and their potentially explosive gases or vapours.

SKU: PC173-00002 Category:

Description

The N17 NIEHUSER pneumatic level sensor is a float-type overflow protection device that acts on the filling valves of a tank.

Technical characteristics of the N17 LMP model:

  • liquid: Avgas and Jet
  • adjustable: 140 – 260 mm (190 – 350 mm)
  • accuracy: ±2 mm
  • temperature: -20°C<Ta<+60 °C
  • pneumatic operating pressure: 3 – 7.5 bar
  • Pneumatic test function: yes
  • Flange: TW
  • Tube length: 513mm

Additional information

Brand

NIEHUSER
