Description

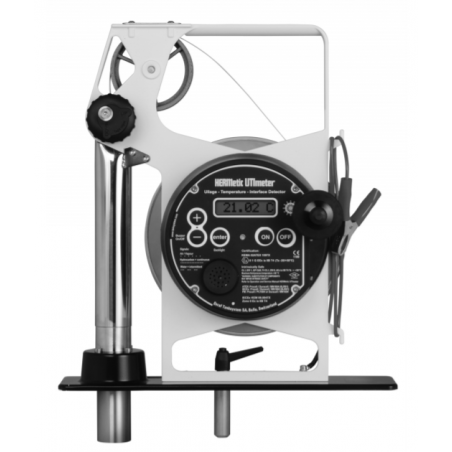

This HERMetic equipment is a portable multi-function gauging system designed to perform 3 measurements in one operation:
a) the hollow (U).
b) the oil/water interface (I).
tape resolution: 1 mm (1/16 “)
tape accuracy: ±1.5 mm for 30 m (±1/16 ” approx. for 100 feet)
accuracy of level or interface detection: ±2 mm (±0.08 ” approx.)
minimum level detectable at the bottom of the tank: 6 mm.
c) temperature (T) by continuous reading at any height.
ambient temperature range: -20°C to 50°C
measuring range of the probe: -40°C to 90°C
resolution: 0.01° or 0.1°, adjustable
Accuracy in the calibration range: ±0.1°C (0°C to 70°C); Temperature scale: °C or °F, adjustable.
This HERMetic equipment meets the requirements of API MPMS Chapter 7 2001, Table 3, ISO 4268 and IP PMM Part IV. This version of the equipment is equipped with a protective cap for the probe, a protective tube under the plate and a fall arrest pin. Due to the small diameter of the probe, this device can be inserted into openings with a diameter of 30mm or more only (25mm without the probe protection cap).
