Description
PTO hydraulic motors from Sunfab are perfect for hydraulically-driven centrifugal pump on refuellers. Carefully check that this model SCM-025W/H-I4D/G-K25-P1 fits your needs based on the technical documentation below. If you need another configuration, please, feel free to ask @ welcome@reds-mro.com or with your priviledged sales representative.

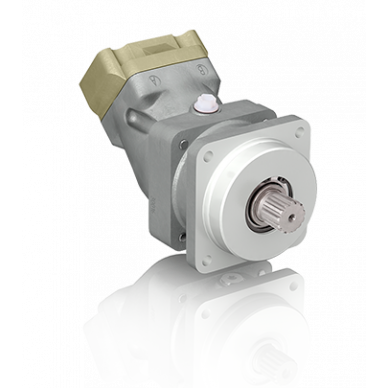

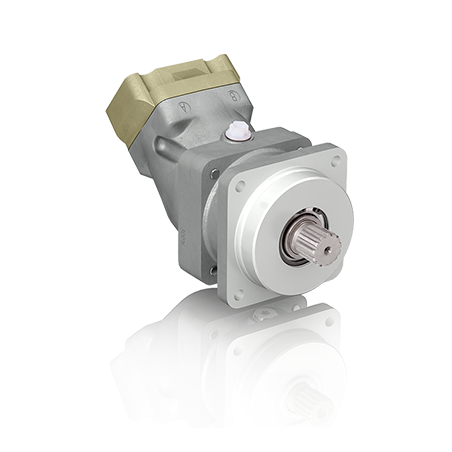

SCM 010-130 ISO is a range of robust axial piston motors especially suitable for mobile hydraulics. SCM 010-130 ISO is of the bent-axis type with spherical pistons. The design results in a compact motor with few moving parts, high starting torque and high reliability. It covers the entire displacement range 10-130 cmᶟ ⁄rev. at a maximum pressure of 400 bar. It´s well dimensioned, double tapered roller bearings permit high shaft loads and lead to excellent speed characteristics. The motor´s high level of reliability is based on the choice of materials, hardening methods, surface structures and the quality assured manufacturing process.
ADVANTAGES:
• High maximum speed
• Smooth operation over the entire speed range
• Available in many different configurations of shafts and connections
• High efficiency
• Speed sensor available as option
• Suitable for applications with high angular accelerations due to its high rotary stiffness
