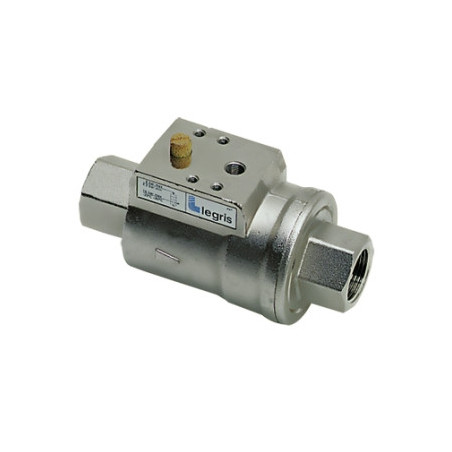

Piloted valve no 3/8 bsp bsp joint fkm for automatic decompression

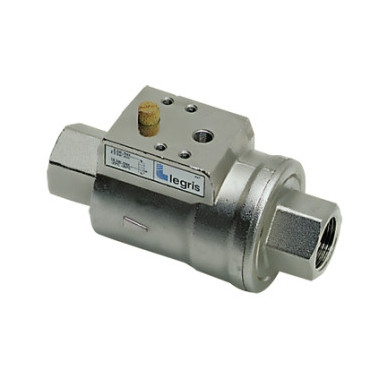

Piloted valve no 3/8 bsp bsp joint fkm for automatic decompression - Image 2

Piloted valve no 3/8 bsp bsp joint fkm for automatic decompression

€ 100,00

Pilot valve open female connector BSPP and seal FKM. Allows remote control of the opening and closing of a circuit. Normally open to the state of rest. The control of the valve causes the closure of the circuit.

SKU: PC227-00001 Category:

Description

Pilot valve open female connector BSPP and seal FKM. Allows remote control of the opening and closing of a circuit. Normally open to the state of rest. The control of the valve causes the closure of the circuit.

Technical specifications

  • Max working pressure: 10bar 1MPa 145psi
  • operating temperature: 0 to 135 ° C 32 to 275 ° F 273 to 408 ° K
  • vacuum resistance: 740mm Hg
  • body: nickel plated
  • brass locknut: Nickel-plated brass
  • joints: FKM seat
  • joints: FKM Silencer: Sintered Bronze G3/8 Lg : 98mm kg : 0,828
