Description

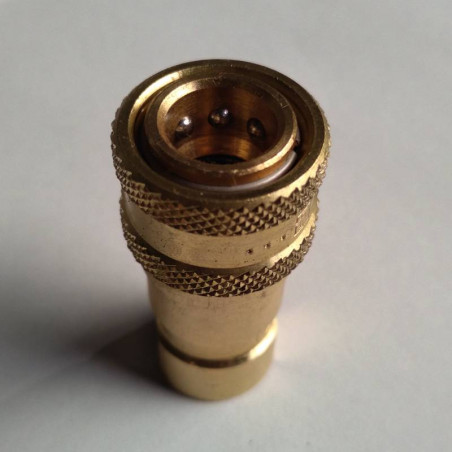

Series 60 double shut-off couplings are versatile and can be used in
a wide range of hydraulic applications where fluid lines need to be connected and disconnected.
Features :
• Accepts ISO 7241-1, Series B compliant nipples
• Poppet valves along with a metal to metal valve stop
maintains valve alignment and prevents flow checking
• Steel, brass, and stainless steel material options
• Brass couplers have double O-rings and stainless steel
locking balls
• Steel coupler sleeve and steel nipple body are hardened to
be wear resistant
• Standard end configurations include female pipe and straight
thread ORB
• Optional Sleeve-Lok and alternative seal materials available
Applications include :
• Industrial hydraulic lines
• Food and chemical processing
• Water and coolant lines
• Mobile equipment
• May be used with some gases
