Description

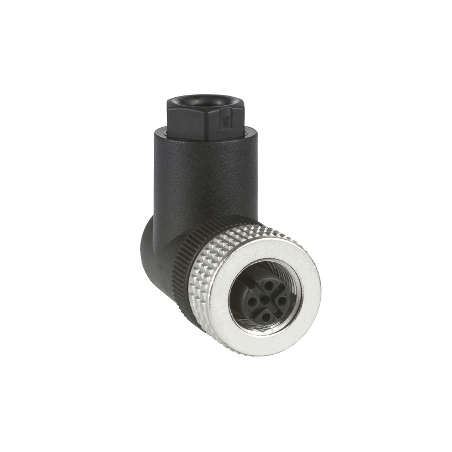

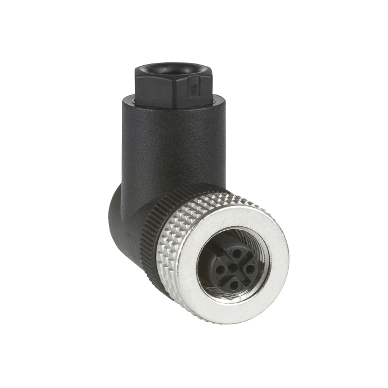

female, M12, 4-pin, elbowed connector – cable tassel Pg 7
Accessory / separate part type Connector
Electrical connection Elbowed female connector M12, 4 pins / Collar material Metal
Status LED Without Cable connection Screw terminal / wire size <= 0.75 mm² / clamping capacity 3...6 mm
Complementary
Cable gland type Pg 7
Cable connector fixing Screw-on
[Ue] rated operational voltage 125 V AC
150 V DC
[In] rated current 3 A
Enclosure material Plastic
Insulating resistance > 1000 GΩ
Contact resistance <= 8000 μOhm
Product weight 0.02 kg
Environment
IP degree of protection IP67
Ambient air temperature for operation -40...85 °C
Offer Sustainability
Sustainable offer status Not Green Premium product
RoHS Compliant - since 0726 - Schneider Electric declaration of conformity
