Description

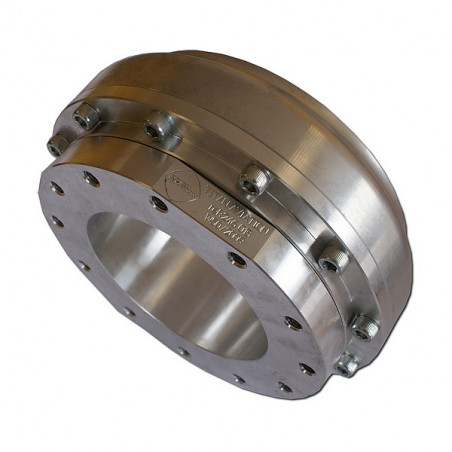

Our swivel joints allow rigid or flexible piping members to pivot with respect to one another all the while being securely fastened. It is typically used to guarantee leak-free operation of distribution piping on moving platforms for refueling equipment. Its robust design however, allows it to be used in many other applications.
Benefits
– Safety: the aluminum body and the high-performance ball bearings guarantee excellent durability. The robust construction holds up even under the harshest conditions. Furthermore, the aluminum joint ensures a perfect seal, thereby preventing contamination from the outside
– Longevity: the swivel joint’s design allows it to maintain its performance for an extended life expectancy
– Maintenance-free: no preventive interventions are required. The performance of the joint remains uncompromised, without greasing or maintenance
Specifications :
– Pipe diameter : 4’’ (100mm)
– Single-bearing
– Made from a high strength aluminum alloy. – Strength is comparable to stainless steel but with much less weight
– Stainless steel ball bearing for improved durability and longevity
– Flange (TW type) connection with threaded holes
– Maintenance free – no greasing required
– Tested to 20 bars (290 psi), suitable for periodic In Situ testing
– Electrical conductivity guaranteed
